型号

Digi ConnectCore 6UL

特点

应用处理器

NXP i.MX6UL-2, ARM® Cortex®-A7 @ 528 MHz, 128 KB L2 cache, with NEON™ MPE (Media Processor Engine) co-processor and programmable smart DMA (SDMA) controller

内存

256 MB / 512 MB / 1 GB NAND flash, 256 MB / 512 MB / 1 GB DDR3

PMIC

NXP PF3000

视讯/绘图

2D Pixel Processing Pipeline (PXP) for color-space conversion, scaling, alpha-blending, and rotation, 8- /16- /18- /24-bit parallel LCD Display up to WXGA (1366x768), 8- /10- /16- /24-bit Parallel CSI with BT.656 support

安全性

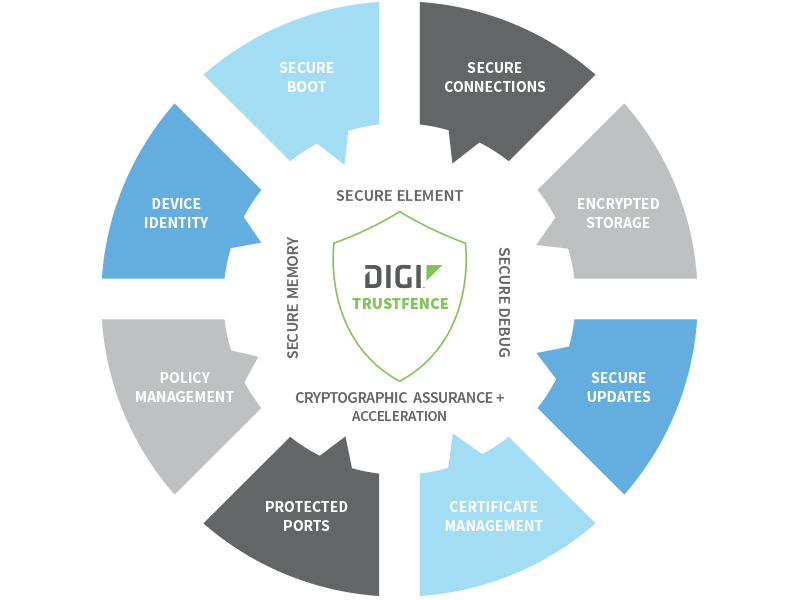

AIS-31 compliant TRNG, ECC/AES256/TDES/ RSA encryption/decryption co-processor, SHA-1/224/256, FameXE PKI co-processor with 4096-bit RSA,/544-bit ECC/ ECDSA support, Secure RTC, Secure JTAG, Secure Storage, Secure Key Management, SPA/DPA/DFA (power/timing/fault attack protection), Tamper Monitor, Digi TrustFence® Embedded Security Framework

周边/ 界面

1 x dedicated MMC 4.5/SD 3.0/SDIO Port (1-/2-4-bit), 2 x USB 2.0 OTG with PHY, 3x I2S/SAI, 1 x S/PDIF Tx/Rx, 2 x FlexCAN (2.0b), 4 x I2C, 4 x SPI, 7 x UART, 4 x Timer, 8 x PWM, 3 x Watchdog, 2 x 12-bit ADC (10 channels) with 4-wire/5-wire touch controller, up to 103 GPIOs

外部总线

16-bit address / up to 16-bit data (multiplexed and non-multiplexed modes)

以太网

Dual 10/100 Mbit Ethernet MAC + IEEE 1588

无线

802.11a/b/g/n/ac 1x1 (MCS 0-9), Bluetooth 5 with strong WPA2-Enterprise authentication/encryption for Wi-Fi connections

MCA™ 微控制辅助器

Ultra-low power ARM® Cortex®-M0+, up to 48 MHz (NXP Kinetis KL03: KL03P24M48SF0)

作业温度

Industrial: -40° C to 85° C (-40° F to 185° F); depending on use case and enclosure/system design

储存温度

-50° C to 125° C (-58° F to 257° F)

相对湿度

Relative humidity 5% to 90% (non-condensing)

无线认证

        US, Canada, EU, Japan, Australia/New Zealand

发射/ 免疫/ 安全性

FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent)

设计验证

Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT

安装 /接脚数

Common Digi SMTplus* surface mount footprint using 76-pad edge castellated pads (1.27 mm pitch) or 245-pad LGA (1.27 mm pitch) option

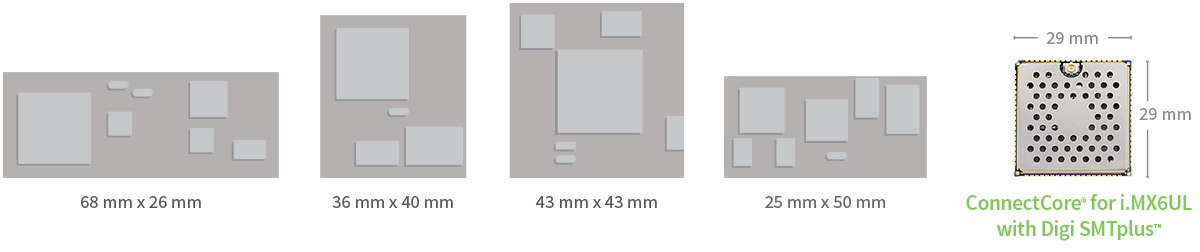

机构尺寸

29 mm x 29 mm x 3.5 mm (1.14 in x 1.14 in x 0.14 in)

电源耗损

Idle Mode (Linux up, no networking): 100mA @ 5V

Idle Mode (Linux up, with 25% Wi-Fi transmit): 118mA @ 5V

Standby Mode (w/memory refresh): 6mA @ 5V

超低电源模式

Event Trigger Mode: 2.5 µA @ 3V (i.MX6UL off, MCA LLS w/HS Comparator active)

Scheduled Wake-Up Mode: 2.5 µA @ 3V (i.MX6UL off, MCA LLS w/HS Comparator active)

最大射频功率

63.1 mW

作业频段

2402 - 2480 MHz; 5.250 - 5.350 GHz; 5.470 - 5.725 GHz

产品保固

3-year
